Home > Delta categories > AC Servo Drives > ASDA-A+

ASDA-A+ Series

Delta C200


Application

Spring machine, bending machine, bending press, feeding machines, electric injection molding machine, double column type machining center, presses machine.

Specification

    A wide power range: from 4.5kW to 7.5kW, 3-phase.
    Input power supply: AC 200V ~ 230V.
    Frequency characteristics (Responsiveness): 550Hz.
    Incremental 20-bit (1280000 ppr) optical encoder.
    Medium / High inertia servo motors are available including: 3kW, 3.5kW, 4.5kW, 5.5kW, 7.5kW.
    Max. input frequency: Line receiver 4Mbps for high-speed motion command.
    Built-in Position / Speed / Torque control modes.
    8 internal programmable registers (point-to-point position control).
    Various internal control functions for a vast range of applications (as A and AB series).
    Modbus communication protocol is supported as standard. Communication Interface: RS-232 / RS-485 / RS-422

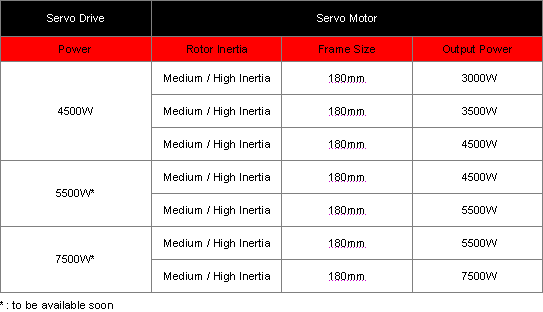

    Servo Drive and Servo Motor Combinations



Description


The A+ series is a new type of omnibearing integrated servo system with advanced functions. It is able to combine with medium / high servo motors from 3kW to 7.5kW ( torque output from 19.1 N-M to 47.74 N-M) and is equipped with incremental 20-bit (1280000 ppr) optical encoder, providing more accurate positioning control for high-precision processing industries or the machine applications where high responsiveness and stiffness is needed to reject high torque disturbances. With A and AB series, Delta provide a complete servo product line (from 100W to 7.5kW) to fully support our customers� needs and offer various options for high torque applications.
