CNC MACHINE

Delta C200

Application

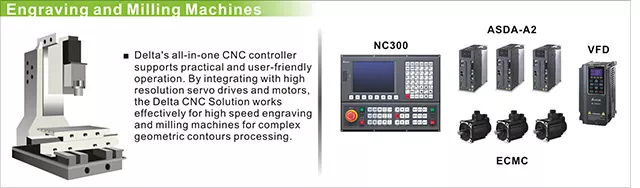

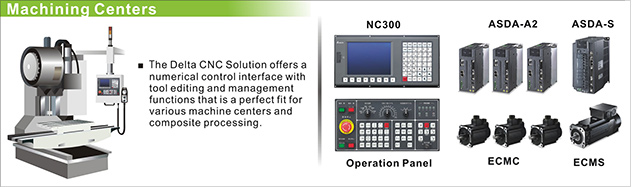

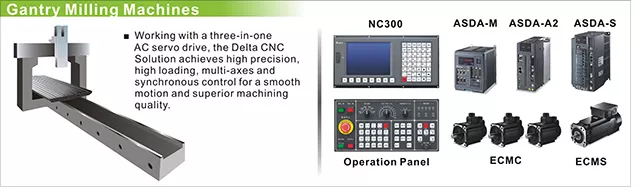

Engraving and Milling Machines / Gantry Milling Machines / Machining Centers / High-speed Tapping Machines / and many more machine tools.

Specification

Built-in 32-bit high speed and high processing dual CPU for multi-tasking operation for enhanced performance.
High-speed communication servo drives and high performance, high resolution servo motors provide fully digital data transmission and improved noise immunity capabilities.
High speed and high precision motion control with the aid of Delta's DMCNET high speed motion control system.
Multi-block look-ahead of acceleration/deceleration before interpolation for complete contouring control balances speed and precision to improve processing efficiency and ensure machining productivity.
A user-friendly Human Machine Interface for direct auto-gain tuning adjustment and parameter back-up of servo system.
Data synchronous management between a PC and an NC via Ethernet communication network./br> CNC Soft software allows users to build custom screens for user-defined operation.
Serial I/O module for flexible system configuration and extension.
USB interface for easy data access, convenient data backup and parameter copies for fast installation.
Delta's ECMC series servo motors for feed axes are equipped with high-resolution 20-bit motor encoder and up to 1 kHz speed response frequency.
Delta's 3-axis synchronous ASDA-M servo system offers excellent multi-axis motion control with only one CPU and advanced synchronous gantry control.
PN power sharing of multiple axes for energy saving.
Built-in fine interpolation commands, friction compensation, and full-closed loop control functions.

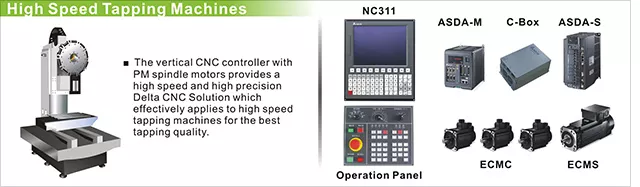

For high-speed CNC tapping machinery, Delta's ECMS series high-speed permanent magnet spindle motor features a rated speed of 6000 r/min and maximum speed of 12000 r/min.
Connecting to energy-saving C-Box for power storage absorbs brake energy regeneration and reduces electricity usage by more than 50%.

EXAMPLES



Description


Delta's CNC Solution features high-speed, high precision and superior surface finishing that enhances the speed, quality, stability of CNC machine tools. It is particularly suitable for high-speed tapping, engraving and milling processes, mold machine manufacturing, component processing and manufacturing, and many other industries.
