DVP-EH3

Delta C200

Application

High-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.

Specification

Excellent Motion Control

High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3).

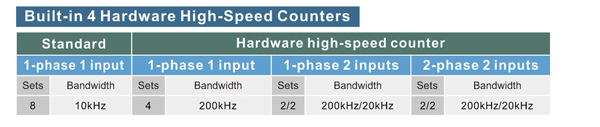

Supports max. 4 hardware 200kHz high-speed counters.
Increases many motion control instructions to meet the applications that require high-speed and high-precision.
positioning control such as labeling machines, packaging machines and printing machines.
Offers linear / arc interpolation motion control.
Provides up to 16 external interrupt pointers.

Complete Program Protection

Auto backup function to prevent losing programs and data even when the battery runs out.
Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged.
Up to 4-level password protection protects your source programs and intellectual property.

Outstanding Operation Performance

CPU + ASIC dual processors support floating point operations.
The max. execution speed of basic instructions is able to reach 0.24microsec.

Flexible Function Extension Modules & Cards

The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available..

PLC-Link

C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules..

Brand-New High-Speed Extension Modules

The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.



Description


The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series. It provides larger program capacity and data registers for more demanding and complex applications.
